433 modem

Flexible for development

433 modem contains a TI CC1111 system-on-chip. It is not only a transceiver, but also an enhanced 8051 micro-controller with USB interface. This enables the user to implement radio waveforms and data processing directly onto chip and keep the need for custom software running on host PC minimal. Existing software, tools and debugging hardware makes device evaluation easy and the user can start to customise and develop the device almost right away.

Small and in-built form factor

433 modem has the standard PCI Express full size mini card form factor. This makes it ideal for implementations where physical space is limited. There is no need for custom interface boards or adapters, as the interface provides easy physical integration to network and automation devices that already contain an existing mPCIe interface. All you need to do is to plug in the modem.

Open by design

The modem uses known and well documented interfaces. CC-Bootloader and test firmware are licensed under GPL.

Communication with the host’s applications is simple, as the data transfer between the modem and host takes place via USB.

433 modem does not need dedicated device drivers, those are already included in major operating systems. Modem firmware can be written in standard C-code, and various open source implementations and firmware design examples already exist.

Serial Programming Interface and general purpose inputs-outputs in debugger connector simplifies and speeds up troubleshooting.

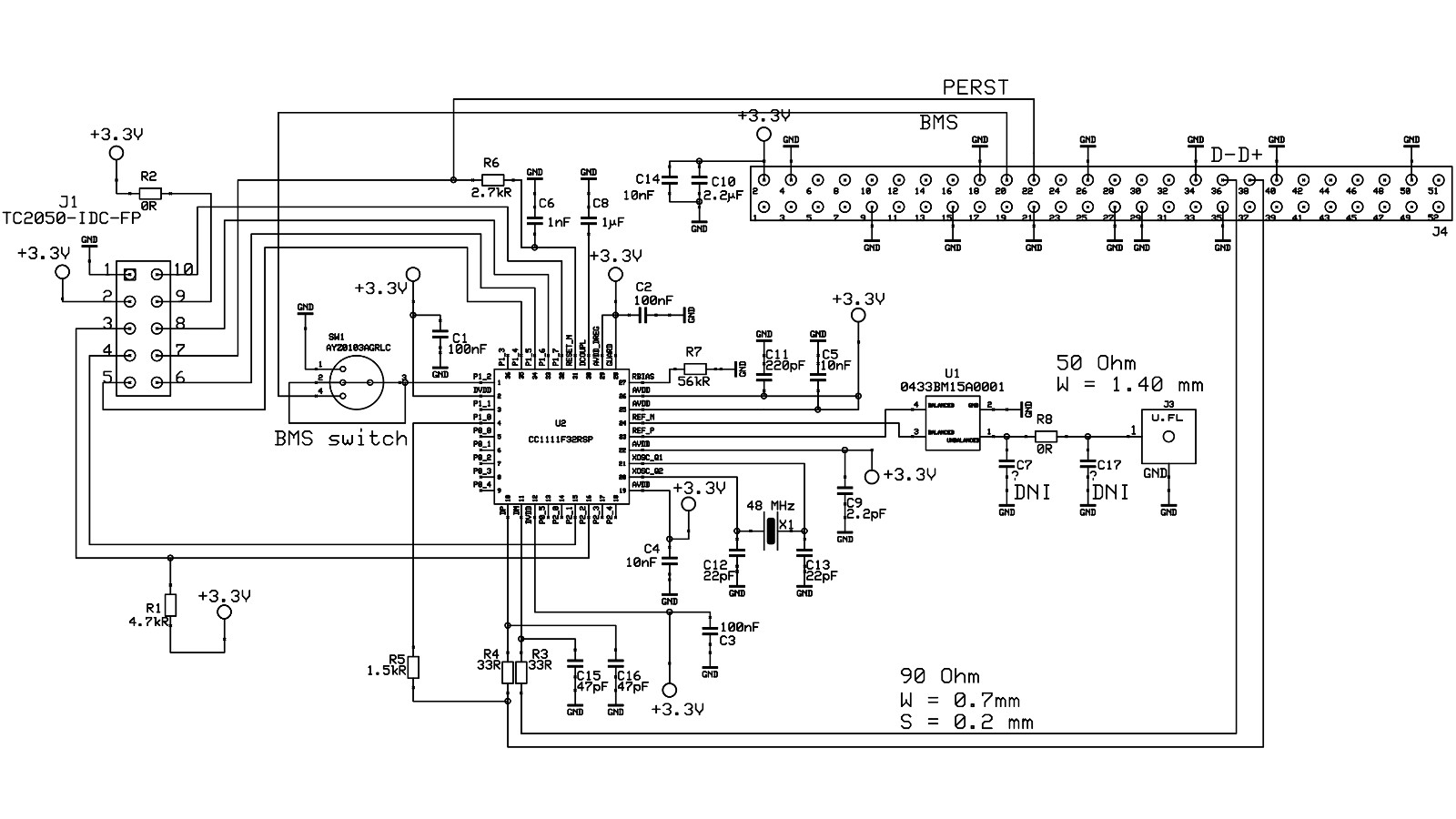

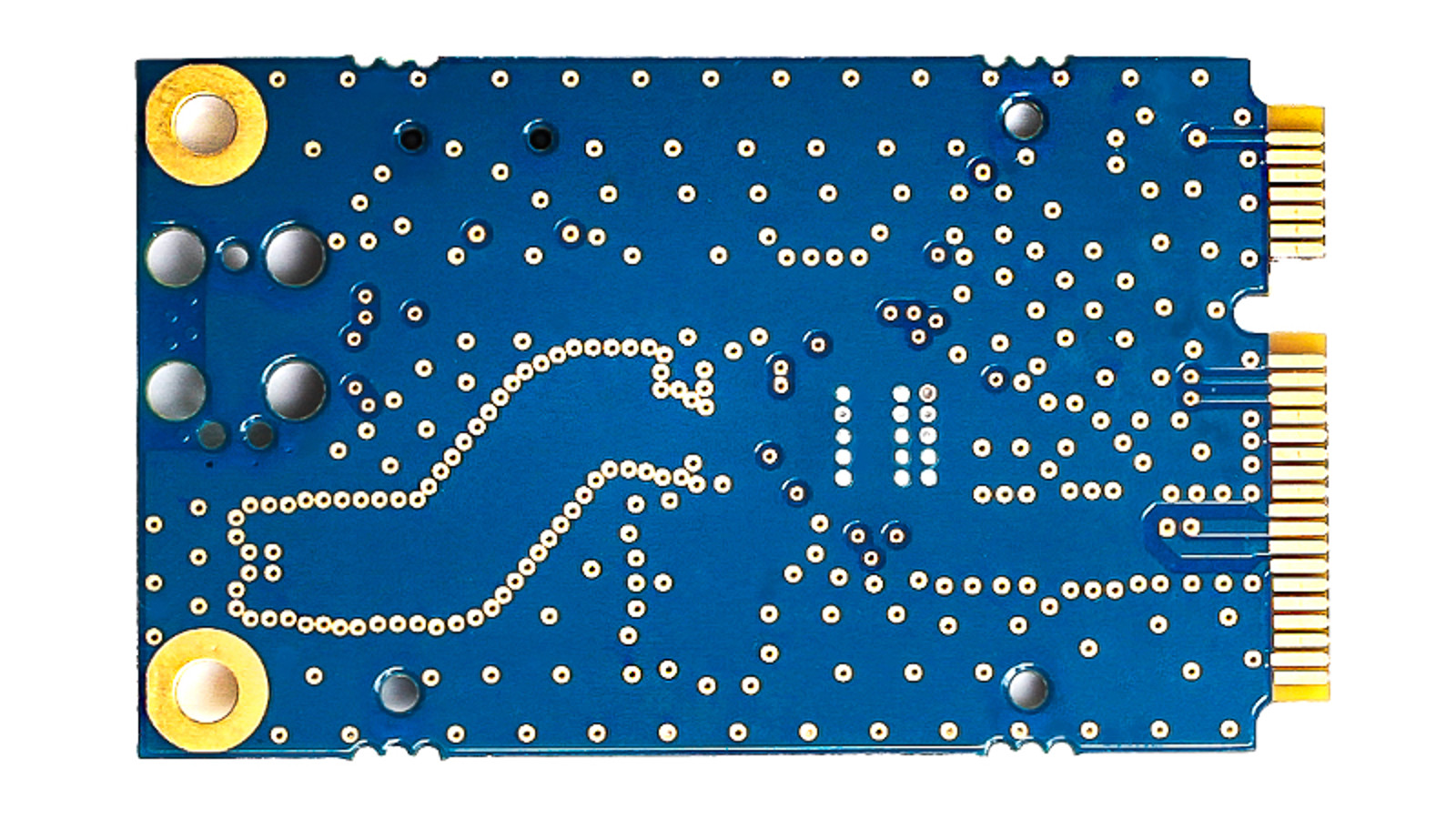

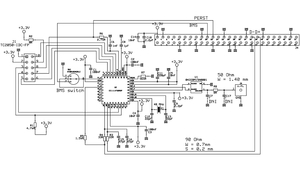

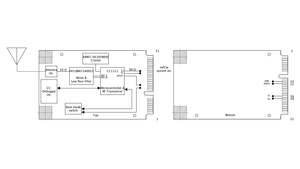

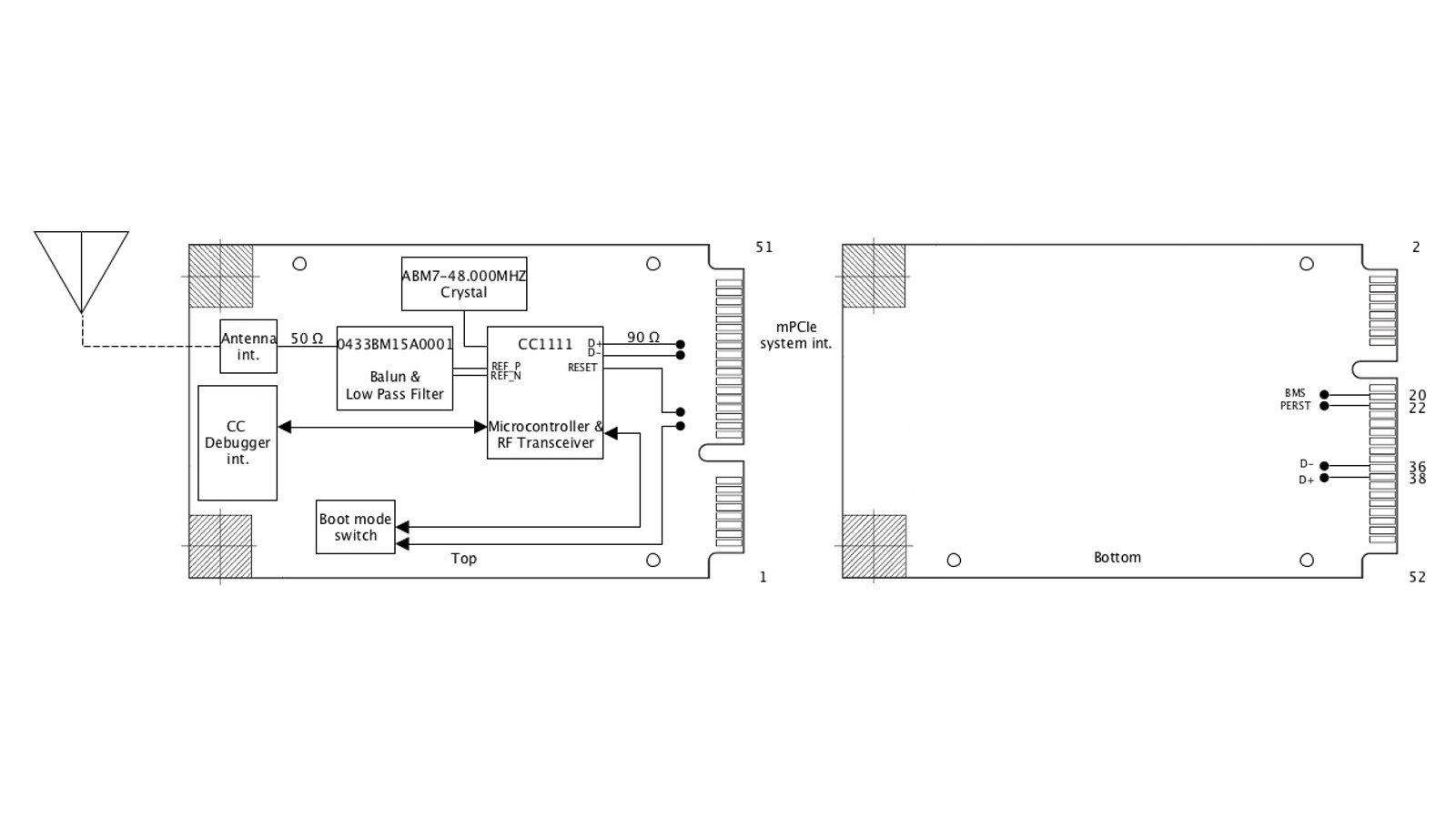

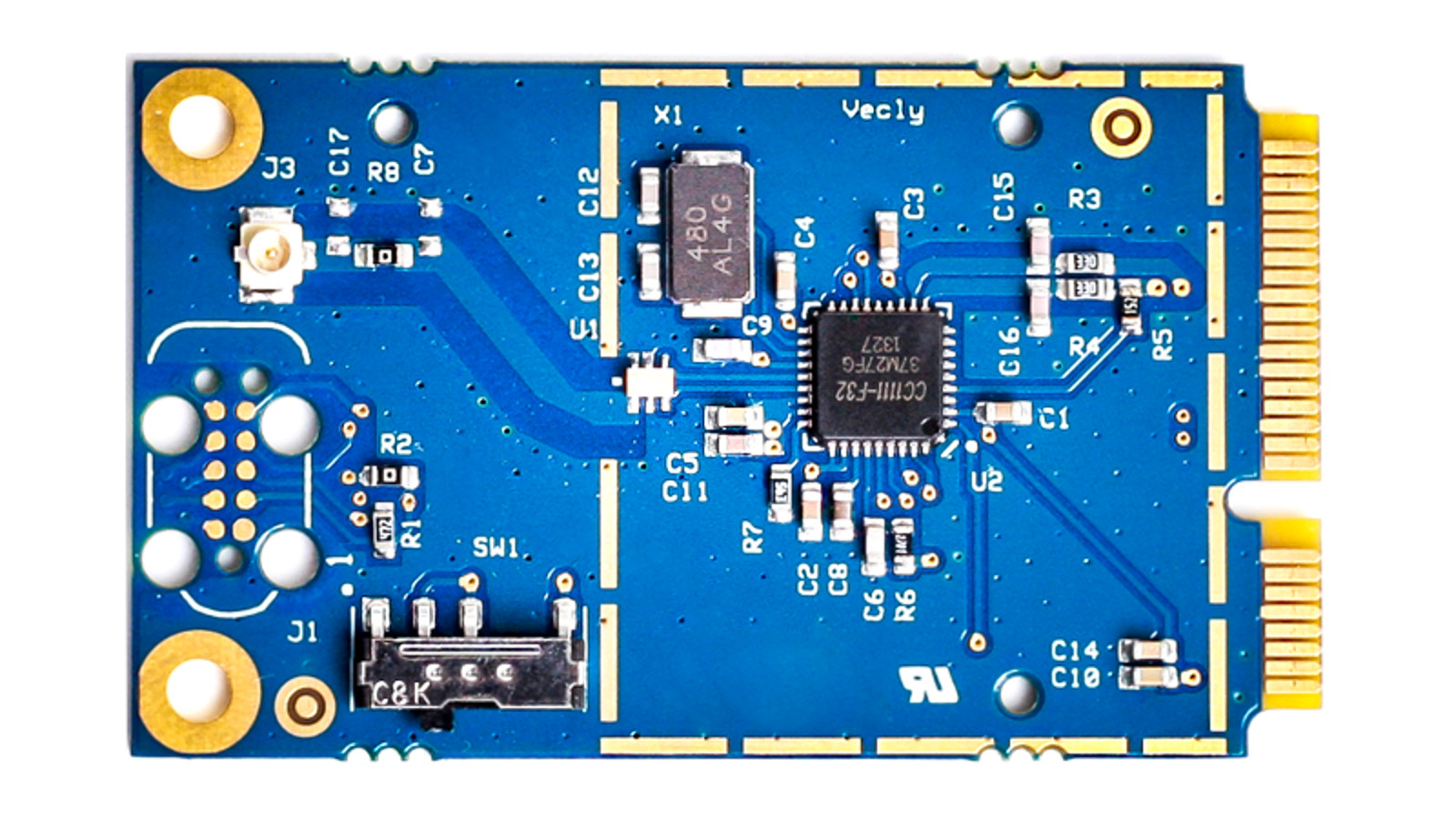

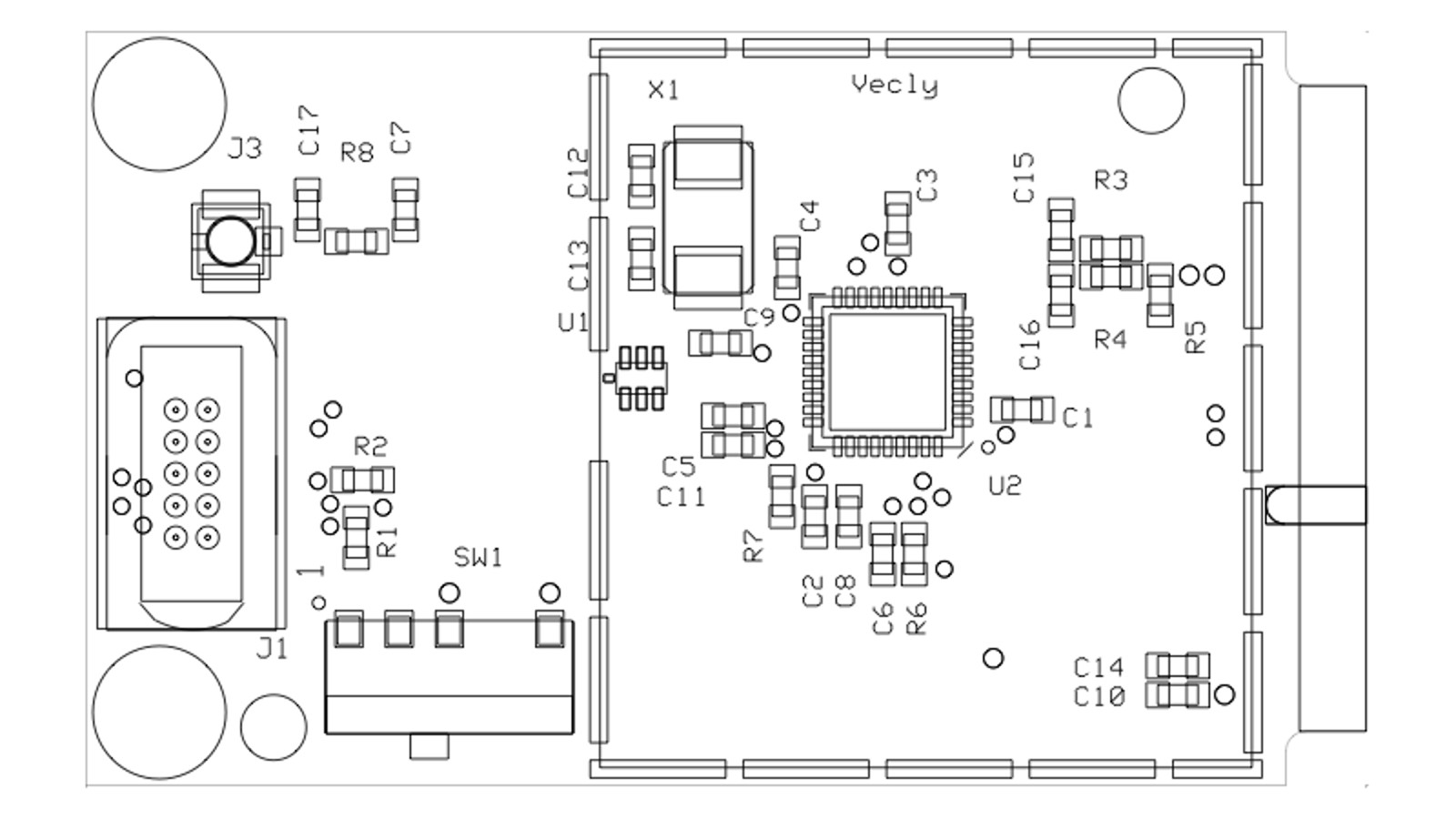

433 modem is an universal programmable radio transceiver for data communication. It can be used to receive data from various sensors and systems that operate on the 433 MHz ISM frequency band. The modem is equipped with a mini PCI Express system interface, therefore it can be installed to standard personal computers or network devices.

The modem has been equipped with an open-source bootloader to allow the user to develop customised firmware. The SoC transceiver and micro-controller provide a well documented and standardised method for modem firmware development. Boot mode selector makes it possible to update firmware via bootloader’s upgrade mode.

Key parameters

Frequency band: 433.050 - 434.790 MHz

RF output power: up to 10 dBm

Supported modulations: 2-FSK, GFSK, MSK, OOK and ASK

Antenna interface: 50 ohm U.FL connector

System interface: Mini PCI Express connector with full speed USB

Debugger Interface: 10 pin onboard compatible with CC-Debugger

Software and available applications

Following third party applications can be used with the 433 modem out of the box.

RfCat is the “Swiss army knife” of sub-GHz radio. The goals of the project are to accelerate security researchers’ work on creating analysis tools for unknown targets, to aid in reverse-engineering of hardware, and to, as the developer puts it, simply offer RF-enthusiasts a project to have fun with.

RfCat project web page

SmartRF Protocol Packet Sniffer is a PC software application that can display and store radio packets captured by a listening RF device. The capture device is connected to the PC via USB.

SmartRF Protocol Packet Sniffer documentation and download

SmartRF Studio is a Windows application that can be used to evaluate and configure Low Power RF-ICs from Texas Instruments. The application will help designers of RF systems to easily evaluate the RF-ICs at an early stage in the design process.

SmartRF Studio documentation and download

Development hardware

Following hardware can be purchased from Vecly or directly from manufacturers.

CC-Debugger Debugger and Programmer for RF System-on-Chips. The CC Debugger is a small programmer and debugger for the TI Low Power RF System-on-Chips.

CC-Debugger information and documentation

Tag Connect 2050 IDC A cable to connect the 433 modem with a CC-Debugger.

Tag Connect 2050 IDC information and documentation

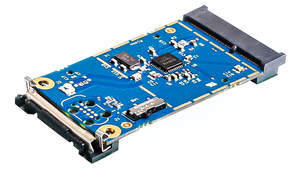

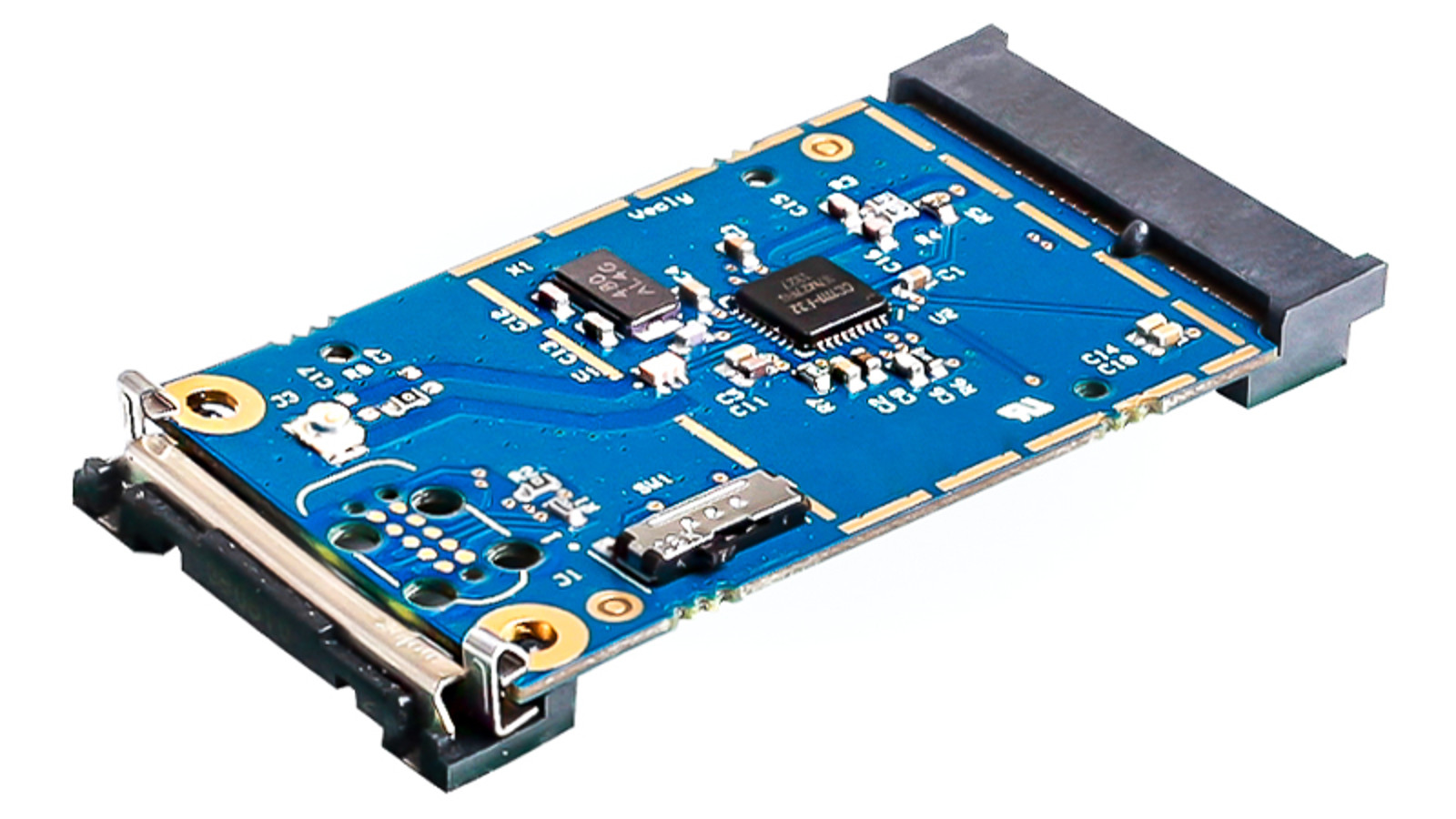

Mini PCI-E Wireless to USB Adapter Generic adapter to connect the 433 modem via USB type-A connector. Improves accessibility for testing and development in PC platform.

Evaluation and development kit

A complete development kit can be purchased from Vecly. The kit contains:

  • 2 433 modems
  • 1 CC-Debugger
  • 1 TC2050-IDC cable
  • 1 Mini PCI-E Wireless to USB Adapter
  • 2 1/4 wavelength SMA antennas with SMA to U.FL pigtail adapters
  • 2 antenna mount brackets for modem and USB adapter

Buy and pay safely with Paypal

433 modem

Price: 59 EUR (excluding VAT and shipping cost).

Product is shipped via international registered maxi letter. You will receive shipment tracking number and tracking information via separate e-mail.

433 modem development kit

Price: 269 EUR (excluding VAT and shipping cost).

Product is shipped via international registered standard parcel. You will receive shipment tracking number and tracking information via separate e-mail.

Please contact Vecly for custom payment, pricing and shipping possibilities.
